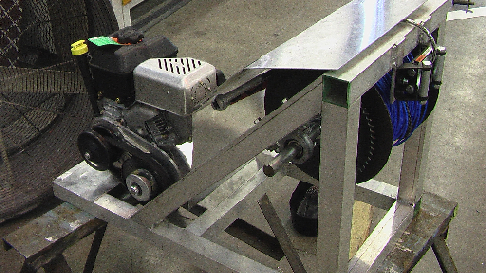

My Winch !!

Lodi Winching · Ollie Joined: 27 Aug 2008 Posts: 95 City: Lodi

Tried to deep water today,no success. It was getting to late to really get any runs only got to try once,but tommorow we are planning on finding a good spot and setting shizzle up perfect and ridin all day though Smile

wakeboarderx03x · Posted: Sep 21, 2008 12:31 am Post subject:

I've got the the same engine. I swear it takes forever to break in.
Are u runnin a 60t sprocket with an 8in spool??
Aluminum is def the way to go.

Lodi Winching · Ollie Joined: 27 Aug 2008 Posts: 95 City: Lodi

Yup,its a briggs ohv 6.5 intek, im sure when it breaks in its the shizzle though. Yeah im runnin 60tooth, but spool im not to sure i think we screwed up on that Sad

mr. Blonde · Posted: Sep 21, 2008 1:39 am Post subject:

yo that's like the exact same setup I have too!!!

416 · Backside 180 Joined: 25 Jul 2008 Posts: 836 City: Toronto

does the spool size change how fast you can ride?

JeffKnox · Posted: Sep 21, 2008 1:28 pm Post subject:

416, yes

Lodi Winching · Ollie Joined: 27 Aug 2008 Posts: 95 City: Lodi

ok well no success today we started trying to slide start and dock start but it pulls easily just cant get us going fast enough to stay above water. we werent very particular with our spool though so im guessing thats the problem. does anyone no for a 6.5 briggs,60tooth sprocket and 12 tooth tav, with 600 feet of rope,what size our spool should be? like the inner,outer,width and sidewalls?

wakeboarderx03x · Posted: Sep 21, 2008 6:37 pm Post subject:

I have that 6.5 hp briggs with a 12t to 72t and 8in. inner diameter spool and it pulls perfect. Today, I actually took the gas tank off and modified the throttle a little bit and now it has a bunch more power. Ha, I didn't think it would be that easy..

JeffKnox · Posted: Sep 21, 2008 6:45 pm Post subject:

7 or 8 in inner diameter 5 and up inches wide... 12 to 15 inch outer diameter.... just make the spool fit into your frame.... the only thing that needs to be set is the inner diameter....

ks2hot4u · Faceplant Joined: 14 Jul 2008 Posts: 6

I like the skateboard wheel! that must be for chain tension ? is so how do you adjust it just by bending the bracket ?

dalesk8 · Backside 180 Joined: 03 May 2007 Posts: 719 City: South OZ

im running a honda 6.5hp, 12 tooth TAV, 60 tooth sprocket and 8 inch I.D spool. deepwater starts me no problem

mr. Blonde · Posted: Oct 05, 2008 1:29 am Post subject:

I have deep water starts but no high speed......I feel like I max out at 15-16

mattc · Faceplant Joined: 24 Sep 2008 Posts: 4

i have that same motor and i just went to put my TAV on and it hits. im in the process of building my winch and i dont want to mount my motor the other way. did you just grind the tav plate so it fits?

Cyclone268 · Posted: Oct 11, 2008 7:37 pm Post subject:

mattc, you mean that little oil hole where you can put oil in is in the way of the tav? yeah that happens to alot of people, you just grind off one of the little fin type things on the back of the tav.

mattc · Faceplant Joined: 24 Sep 2008 Posts: 4

yup thats the problem looks like I got a project tonight thanks.
