introducing... the AUTO WINCH


Post new topic   Reply to topic    Wakeskating.com Forum Index -> Winching sponsored by Pulldozer.com
View previous topic :: View next topic
Author Message
chris bowden
Faceplant
Faceplant


Joined: 25 Jun 2011
Posts: 10

PostPosted: Jun 26, 2011 3:54 pm    Post subject: introducing... the AUTO WINCH Reply with quote

A while in the making, here is the first test of my remote control winch in freezing Melbourne, Aus.

http://www.vimeo.com/25501463
Back to top
View user's profile Send private message
coricluster
Backside 180
Backside 180


Joined: 23 Apr 2007
Posts: 1820
City: berlin

PostPosted: Jun 26, 2011 4:17 pm    Post subject: Reply with quote

i doubt it was freezing my freind, u wanna see freezing. come to Maryland in january, thats freezing
Back to top
View user's profile Send private message AIM Address
halt
Faceplant
Faceplant


Joined: 05 Dec 2009
Posts: 47
City: sweden...

PostPosted: Jun 26, 2011 5:35 pm    Post subject: Reply with quote

what Hz are you running your radio on?
Back to top
View user's profile Send private message Send e-mail MSN Messenger
chris bowden
Faceplant
Faceplant


Joined: 25 Jun 2011
Posts: 10

PostPosted: Jun 27, 2011 1:38 am    Post subject: Reply with quote

Ok, maybe not freezing Smile ...but pretty cold for Melbourne's weather. Running on 315MHz halt.
Back to top
View user's profile Send private message
supermanotorious
Backside 180
Backside 180


Joined: 05 Apr 2010
Posts: 518
City: Phoenix

PostPosted: Jun 27, 2011 9:37 am    Post subject: Reply with quote

Like! Like! Like!
_________________
☆PHOENIX WINCH☆
FACEBOOK
YOUTUBE
Back to top
View user's profile Send private message Visit poster's website
halt
Faceplant
Faceplant


Joined: 05 Dec 2009
Posts: 47
City: sweden...

PostPosted: Jun 28, 2011 9:26 am    Post subject: Reply with quote

I ride mine on 434 Mhz and could not do a deepwater start more than 50 m from the winch. Just because water disturbs the signal. The Lower frequency the less interference, So your is 120 Mhz lower than me, would be intressting to know how far from the winch you can Deep water start from.
Back to top
View user's profile Send private message Send e-mail MSN Messenger
chris bowden
Faceplant
Faceplant


Joined: 25 Jun 2011
Posts: 10

PostPosted: Jun 30, 2011 1:47 am    Post subject: Reply with quote

Check out this vid for a more detailed look in to the operation of the Auto Winch.

http://vimeo.com/25800206

This system basically consists of a wireless remote which when pushed sends a signal to a solenoid to engage the throttle. An adjustable timer in the circuit delays the solenoid from activating, giving you sufficient time to ditch the remote and get a good grip of the handle. The motor then cuts out when a pre-determined amount of pulses are sent to the counter, that way if you stack and let go of the handle you can rest assured the winch will stop in the same spot every time!!

Simple really, now go off and make your own

For more information, including wiring diagrams and where to source the parts email me at ... chris.bowden.80@gmail.com
Back to top
View user's profile Send private message
chris bowden
Faceplant
Faceplant


Joined: 25 Jun 2011
Posts: 10

PostPosted: Jun 30, 2011 1:53 am    Post subject: Reply with quote

halt - I've only tested it out at our winch gap, it's 50m long but you're already elevated above the water so I suppose that would help a little. I bought my receiver from dinodirect.com and the remote that came with it was only good for 10m (even though it said 100m), so I bought the 3000m remote (3000m!!! what a joke hey!!! as if!!), that seems to be working better. I've yet to try it over a 200m distance but if it doesn't work I'll just make up some kind of repeater.
Back to top
View user's profile Send private message
POPTART
360 flip
360 flip


Joined: 24 Jul 2007
Posts: 7585

PostPosted: Jun 30, 2011 8:55 am    Post subject: Reply with quote

so awesome , and that home gap is more than righteous
_________________
https://vimeo.com/moontowerco
Back to top
View user's profile Send private message Send e-mail
chris bowden
Faceplant
Faceplant


Joined: 25 Jun 2011
Posts: 10

PostPosted: Jul 08, 2011 8:13 am    Post subject: Reply with quote

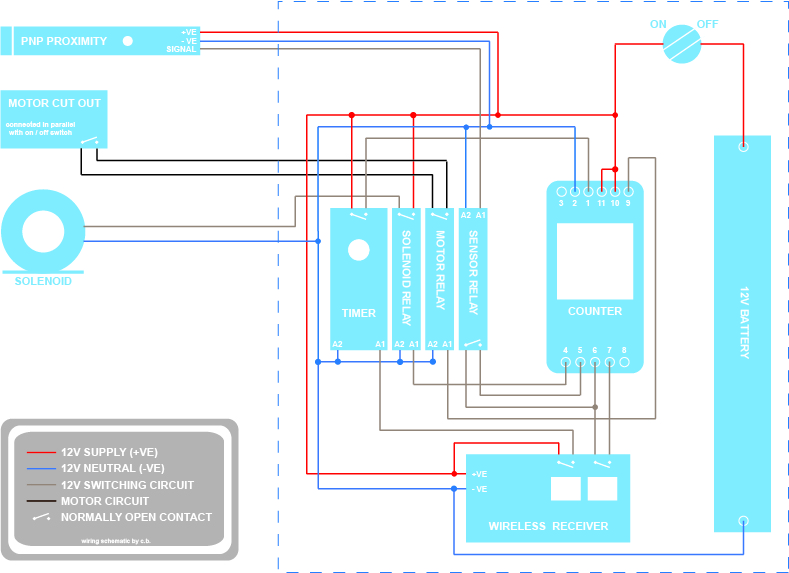

here are the wiring diagrams for those of you who are interested in building their own auto winch Smile

... and the links again for those who missed them the first time around

http://www.vimeo.com/25501463
http://www.vimeo.com/25800206

Chris.




Auto Winch wiring diagram.jpg

 Description:
...
 Filesize:  228.61 KB
 Viewed:  6681 Time(s)

Back to top
View user's profile Send private message
overstreet31
Frontside 180
Frontside 180


Joined: 26 May 2009
Posts: 412
City: Lumberton

PostPosted: Aug 12, 2013 9:13 pm    Post subject: Reply with quote

Does anyone know where a link to the missing video would be. Really would like to find it if possible. Thanks for any help.
_________________
www.backyardrailpark.com
Back to top
View user's profile Send private message Visit poster's website
Gnarly Dancer 42
360 flip
360 flip


Joined: 21 May 2007
Posts: 5116
City: kalamazoo

PostPosted: Aug 12, 2013 9:22 pm    Post subject: Reply with quote

i want one!
_________________
http://www.stickandflick.com

http://www.kearnsmedia.com
Back to top
View user's profile Send private message Visit poster's website AIM Address
girlsafteryou
Pop Shuvit
Pop Shuvit


Joined: 16 Jun 2009
Posts: 102
City: Seattle

PostPosted: Aug 12, 2013 10:25 pm    Post subject: Reply with quote

That's Rad.
Back to top
View user's profile Send private message Visit poster's website
