 Posted: Mar 18, 2005 3:53 am Post subject: Inside Integrity Wakeskates |
 |
|
For anyone interested...
Here are some shots and information on the inner tech that goes into each Integrity skate.
Shot # 1 ...

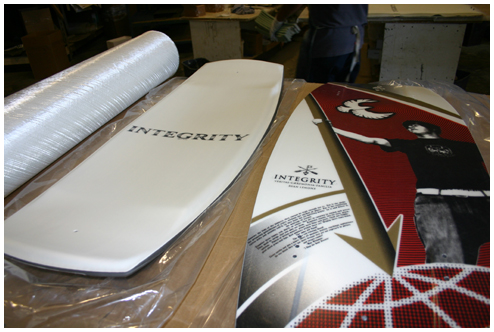

Finished product...
Shot # 2 ...

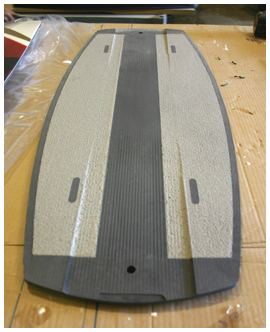

Here is our center-weighted CNC machined core... 75 % of all the weight is placed thru the middle of each deck helping it spin on an axis.
Shot # 3 ...

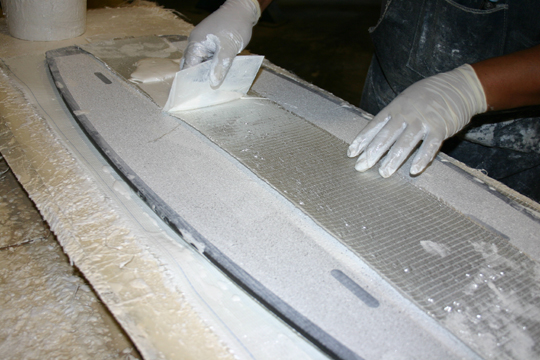

This is our extra 22 oz. patch of tri-ax glass... creating a super stiff skate.
44 oz. total on the bottom, 22 oz. on the top.
Over kill...? Yes.
You won't break this ever...
|
