 Posted: Sep 23, 2010 11:23 pm Post subject: winch project from start to finish |
 |
|
Thanks to everyone here I was able to come up with a design of my own that worked for what I had. I obviously took bits and pieces of a lot of different winch designs and came up what I though was the best solution. If anyone wants help with anything I built or if you are thinking of building your own feel free to take any of the designs off my winch and find out how to make it cheaper, lighter and stronger. Building this thing was definitely a challenge and took way too many trips to Home Depot but you figure it all out as you go along. So here it is...
|
| Description: |

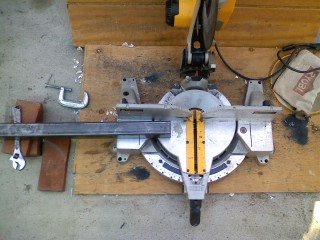

| cut the square tubing using an angle saw and a metal cutting blade. |
|
| Filesize: |
76.16 KB |
| Viewed: |
8209 Time(s) |
|
| Description: |

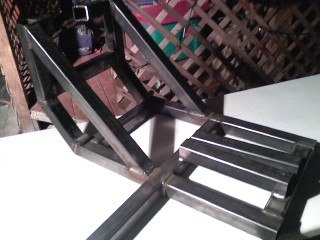

| After the square tubing was cut and measured according to the wood frame, weld the pieces together and pray that it's straight because most likely they wont be perfect but thankfully they were almost perfect |
|
| Filesize: |
68.26 KB |
| Viewed: |
8209 Time(s) |
|
| Description: |

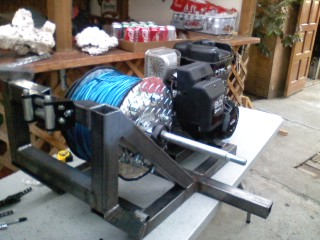

| Line everything up to drill holes for all the bolts and also put the hitch mount in a receiver to mark the holes for the hitch pin. I used the drill bit that was meant for the size bolt you were going to use to eliminate any play |
|
| Filesize: |
81.95 KB |
| Viewed: |
8209 Time(s) |
|

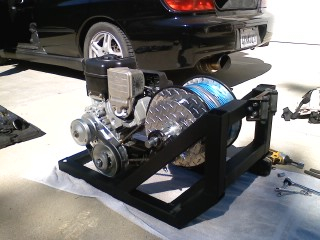

| Description: |
| I just used flat black paint for the frame. I also put motorcycle windscreen trim wrapped by 2 layers of electrical tape over the diamond plate for protection from sharp edges |
|
| Filesize: |
73.74 KB |
| Viewed: |
8209 Time(s) |
|

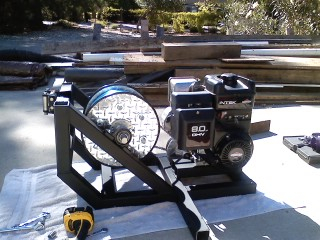

| Description: |
|
| Filesize: |
91.89 KB |
| Viewed: |
8209 Time(s) |
|
|
| Back to top |
|
 |
|
|
Live2Ride
Ollie
Joined: 04 Nov 2008
Posts: 62
City: San Jose
|
| Posted: Sep 23, 2010 11:33 pm Post subject: |
|
|
here are some more pics
|
| Description: |

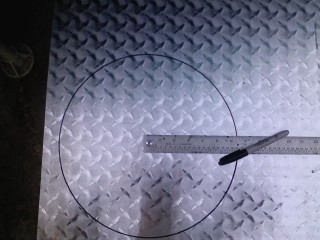

| used a ruler with 2 holes and a screw to make a perfect circle. I used a jig-saw to make the not so perfect circle but close |
|
| Filesize: |
54.51 KB |
| Viewed: |
8206 Time(s) |
|
| Description: |
|
| Filesize: |
44.8 KB |
| Viewed: |
8206 Time(s) |
|
| Description: |

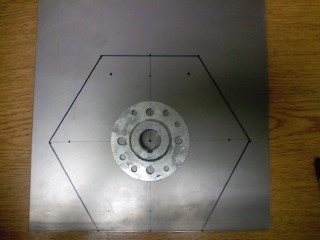

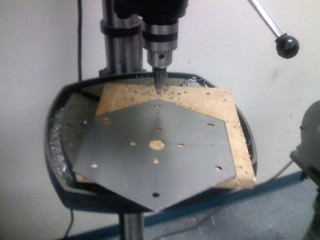

| marking where I need to drill holes. I made this using a steel plate cutter that gives you perfectly straight cuts. I then used a drill press to make the holes |
|
| Filesize: |
43.95 KB |
| Viewed: |
8206 Time(s) |
|
| Description: |

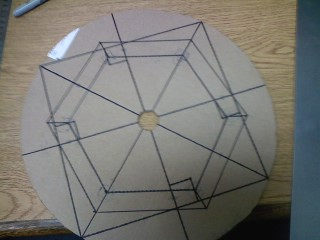

| I used this to make sure I had a perfect Hexagon with 6 pipes for the rope with an 8 inch diameter. |
|
| Filesize: |
52.79 KB |
| Viewed: |
8206 Time(s) |
|
| Description: |

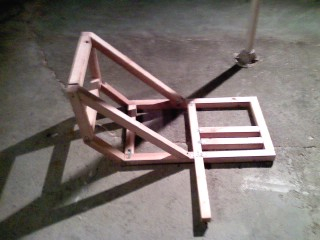

| here is the original wood frame I built to base the whole winch off of. 2 dollars at Home Depot saved me a ton of headaches |
|
| Filesize: |
63.04 KB |
| Viewed: |
8206 Time(s) |
_________________
TheLiquidPlayground.com |
|
| Back to top |
|
|
Raven
3 Shuv Reed Texas Gap
Joined: 18 Oct 2004
Posts: 5988
City: OC
|
| Posted: Sep 23, 2010 11:34 pm Post subject: |
|
|
she looks tough.....solid.
_________________
dbanana wrote:
May you have friends,boards,beer,and glassy water forever. Cassette4life |
|
| Back to top |
|
|
Live2Ride
Ollie
Joined: 04 Nov 2008
Posts: 62
City: San Jose
|
| Posted: Sep 23, 2010 11:35 pm Post subject: |
|
|
and a couple more pics
|
| Description: |

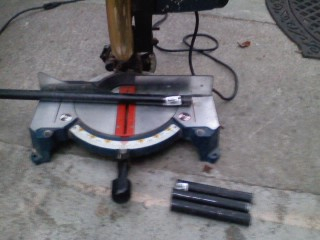

| cutting gas piping that goes over the bolts that are on the allthread which is going through the center of the pipe. |
|
| Filesize: |
59.25 KB |
| Viewed: |
8201 Time(s) |
|
| Description: |
|
| Filesize: |
72.45 KB |
| Viewed: |
8201 Time(s) |
_________________
TheLiquidPlayground.com |
|
| Back to top |
|
|
supermanotorious
Backside 180
Joined: 05 Apr 2010
Posts: 518
City: Phoenix
|
| Posted: Sep 24, 2010 5:59 pm Post subject: |
|
|
Ace hardware has a variety of plastic end caps for square tube, check it out and cap the 2 tubes on top, it will look super legit
_________________
☆PHOENIX WINCH☆
FACEBOOK
YOUTUBE |
|
| Back to top |
|
|
Live2Ride
Ollie
Joined: 04 Nov 2008
Posts: 62
City: San Jose
|
| Posted: Sep 24, 2010 10:14 pm Post subject: |
|
|
thanks. I've been looking for some end caps but I was only finding them being sold in bulk. I'll definitely check out ace when i get back in town.
_________________
TheLiquidPlayground.com |
|
| Back to top |
|
|
mojo
Backside 180
Joined: 17 Mar 2008
Posts: 2240
City: mob town
|
| Posted: Sep 24, 2010 11:23 pm Post subject: |
|
|
is the outer, smaller diamond plate for a brake?
_________________
"I said take me to the sea, cause that is where I want to be. I said take me to the sea and let my mother bury me." Buck-0-Nine |
|
| Back to top |
|
|
Randomhero14
Frontside 180
Joined: 25 Aug 2009
Posts: 346
|
| Posted: Sep 25, 2010 10:00 pm Post subject: |
|
|
| Hit me up man. I'm in Dallas and would love to come shred!
|
|
| Back to top |
|
|
Live2Ride
Ollie
Joined: 04 Nov 2008
Posts: 62
City: San Jose
|
| Posted: Sep 28, 2010 1:17 am Post subject: |
|
|

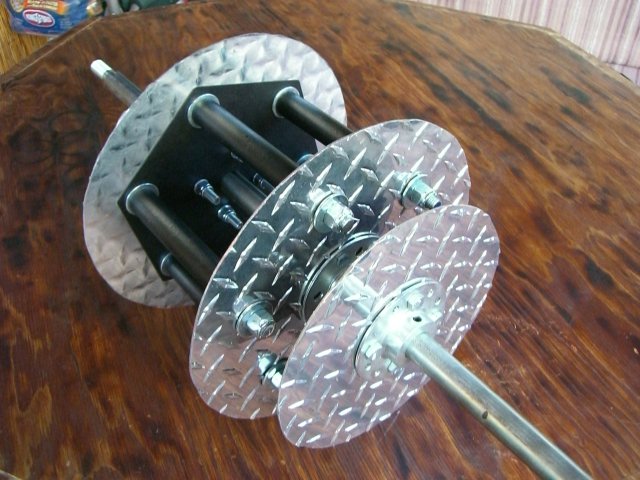

mojo, the outer smaller diamond plate is the chain guard. I was thinking about a brake but found out the rope doesn't get pulled in that far once the rider falls and the winch driver kills the motor for me to bother with a brake. Just tried to keep it simple and cheap as possible.
Randomhero14, I would love to come to Dallas and shred but I'm in San Jose, CA not San Jose, TX so riding is going to be a little difficult haha but if you're ever in Northern California hit me up
